196X Smith Corona Secretarial 315 #7EL 1504954

Status: My Collection
Hunter: James Grooms (jgrooms)
Created: 04-25-2026 at 04:21AM
Last Edit: 04-25-2026 at 06:33AM

Description Hunter 20 Photos 0 Likes  Find on Ebay #AD  Find on Etsy #AD

Description:

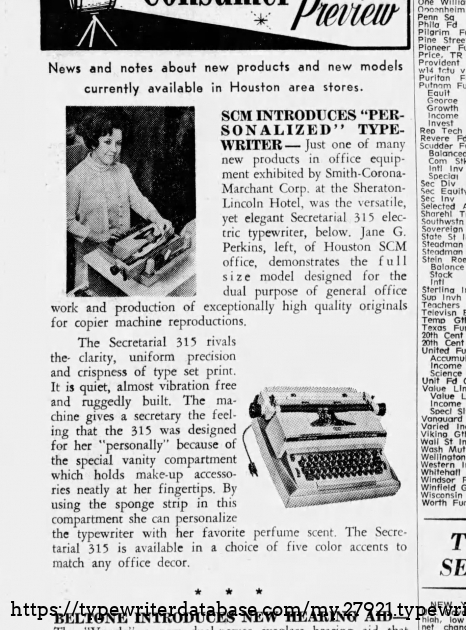

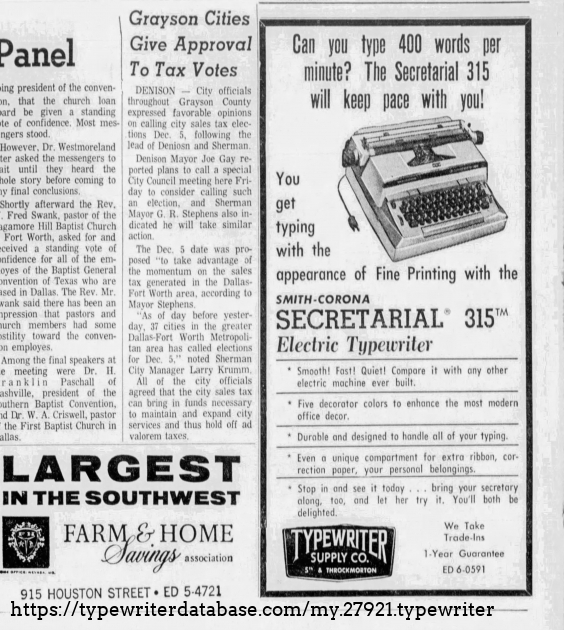

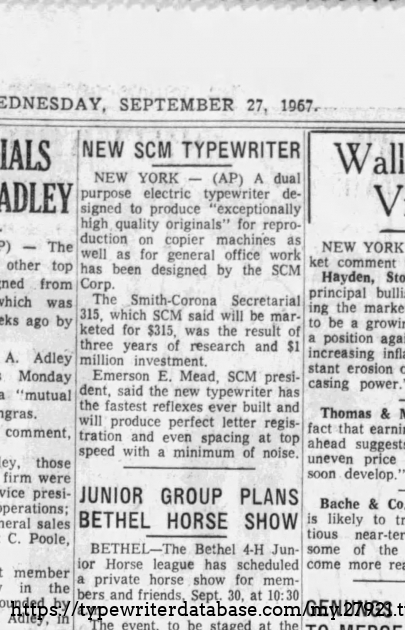

New for 1968. This one rolled out with press releases and a large ad campaign.

Despite the conventional wisdom, this is not a 210/220/250 in a big metal shell. Maybe the components in this came from the 400 series standards. The main difference is the rack and pinion carriage return is now cable-driven via a solenoid with a proper carriage dash pot (de-accelerator). The frame is braced and a number of parts are HD compared to the typical 250s.

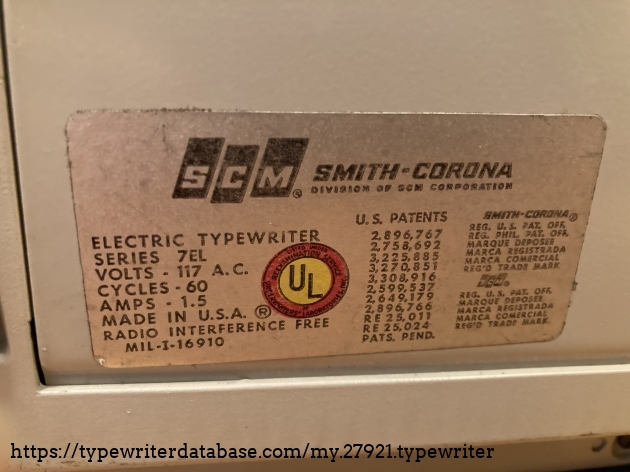

This is a 7 EL, then is a 500 a 7 ELA? The 300 is a 7 ELB and then there is a 7 ELC.

The signs that SC is in trouble. After a big R&D effort to build this, the bean counters used the old materials from the 250 for these. I suspect if I had a 1970 Sec 500 to look at, it would be like the 300 on series.

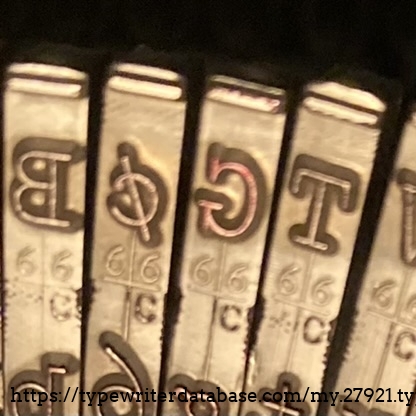

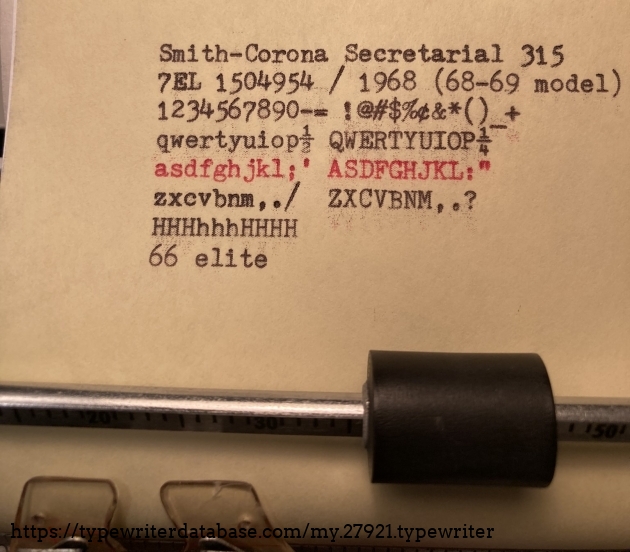

Typeface Specimen:

Links:

• The Secretarial lineup for 1968

Photos:

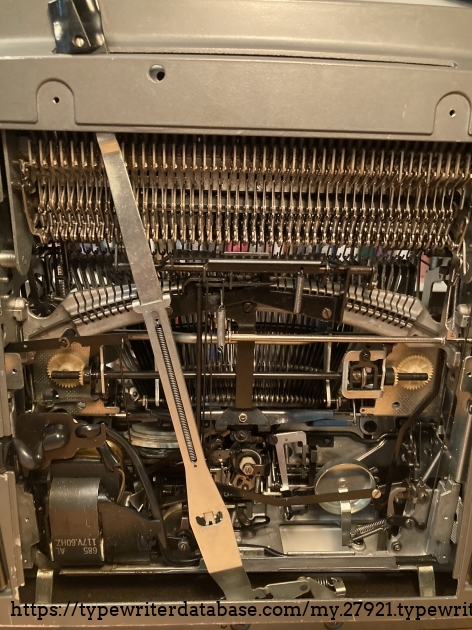

A 70s era 300 series machine.

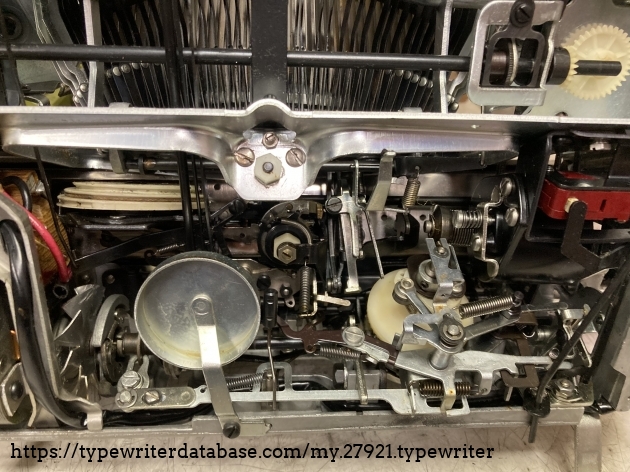

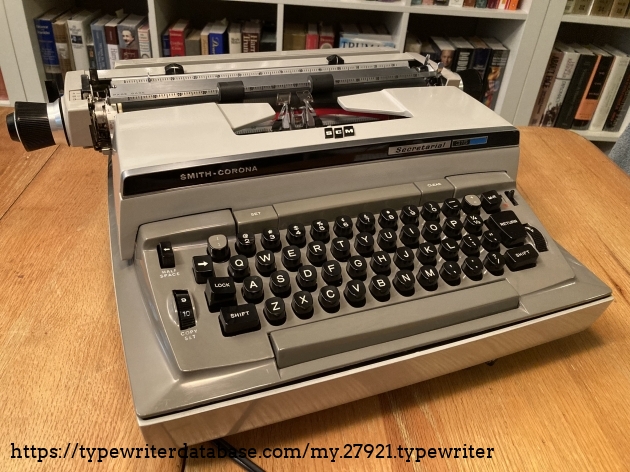

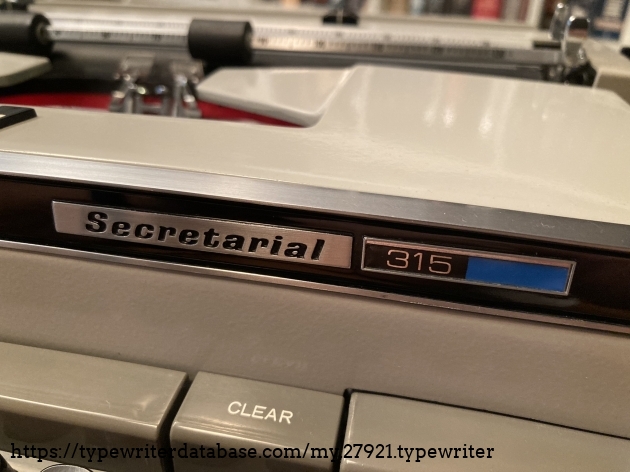

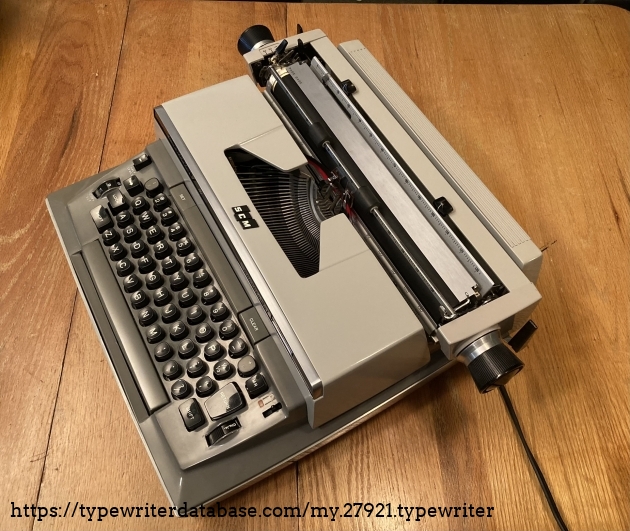

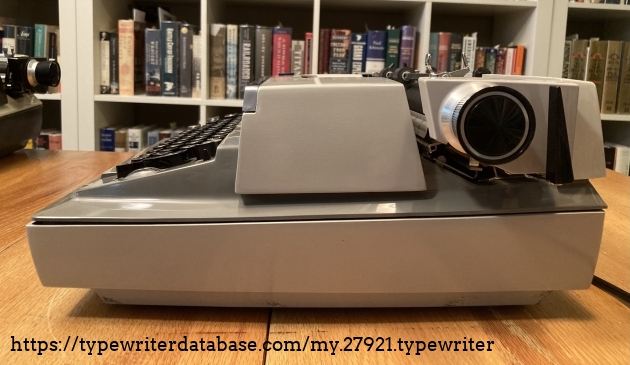

Secretarial 315.

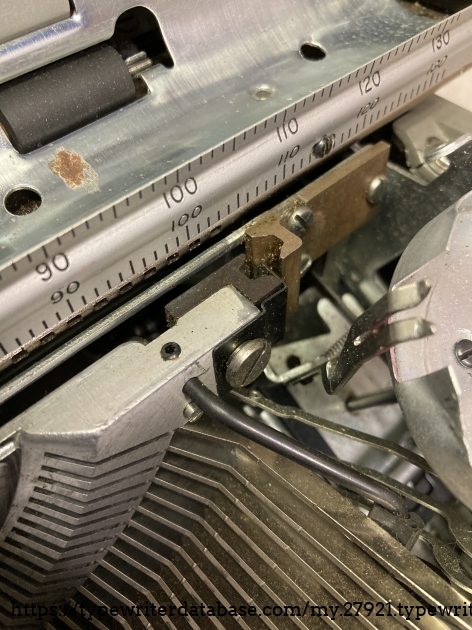

segment bearings/brackets beefed up.

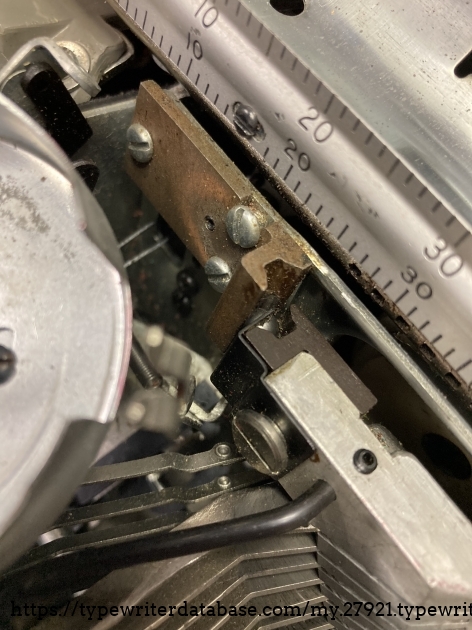

beefed up segment bearing and mounts.

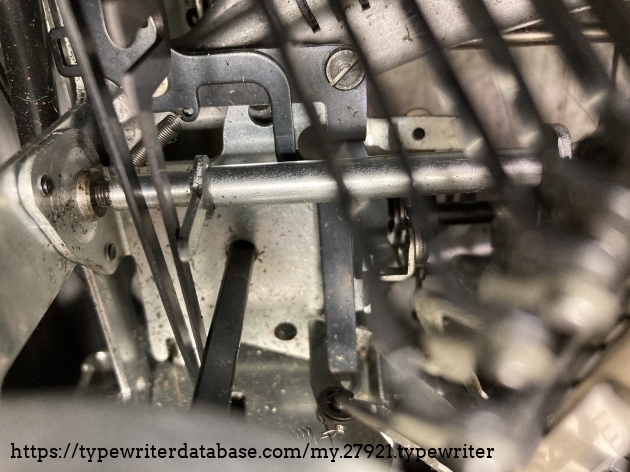

Larger segment pivot rod and modified mounts to frame.

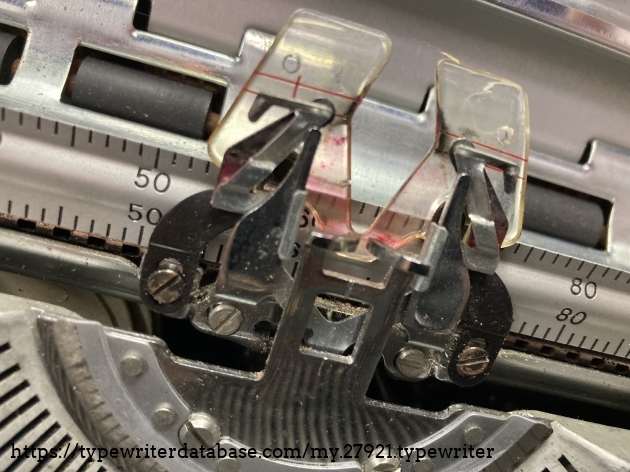

Different ribbon lift/card guide.

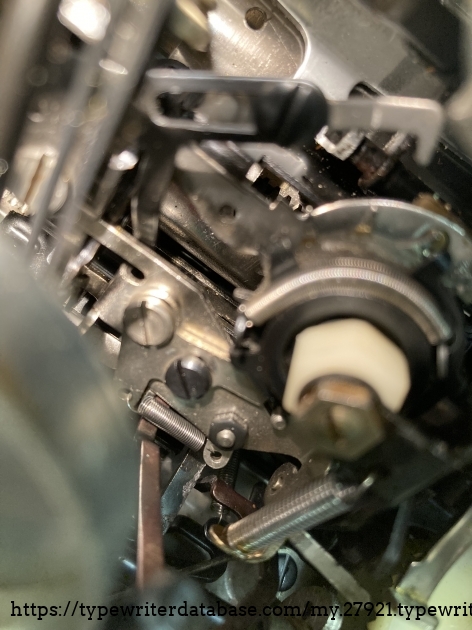

never seen a SC escapement like this. The rocker is entirely different.

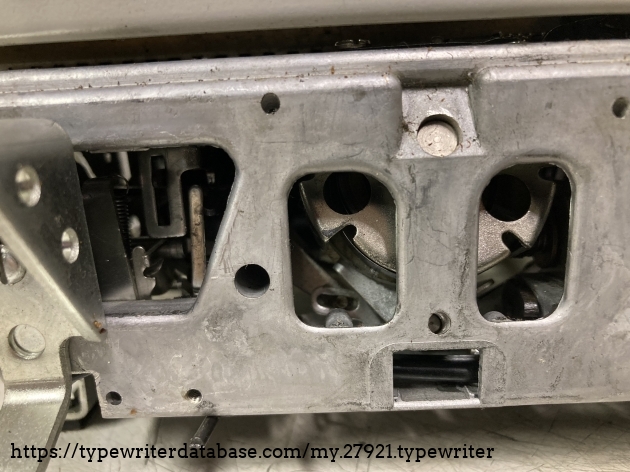

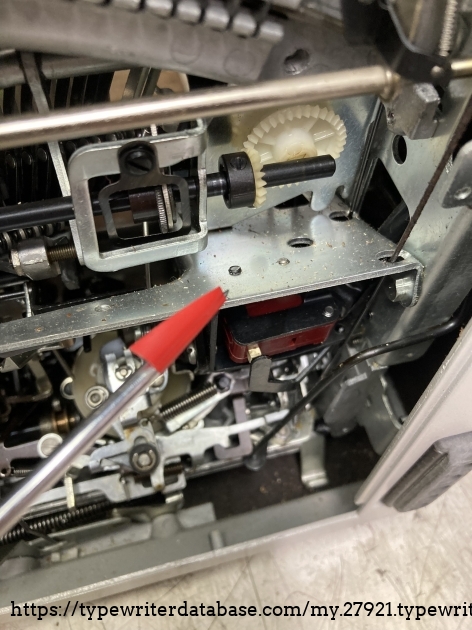

Frame braced,

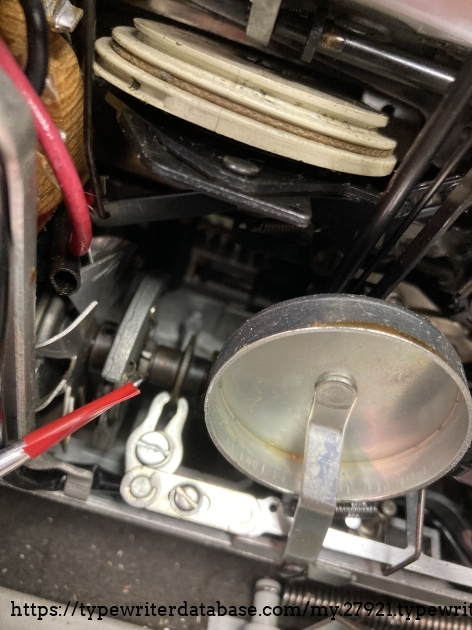

gone are the two return gears off the motor.

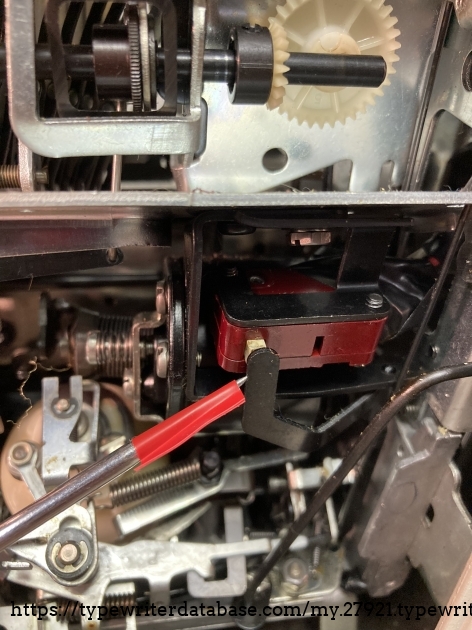

Solenoid activated return.

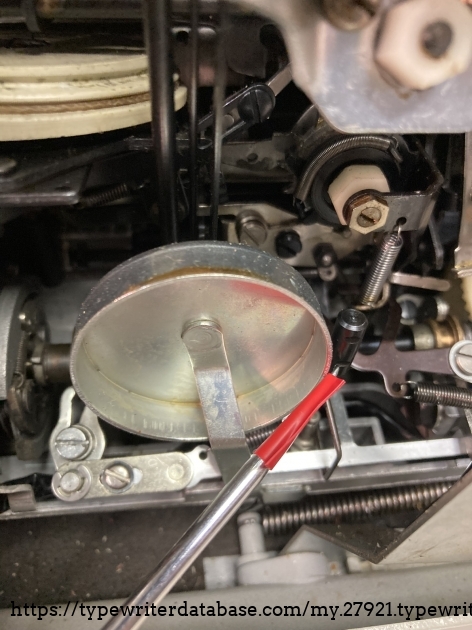

bell is moved and strikes from the side. Gone is the thud bell.

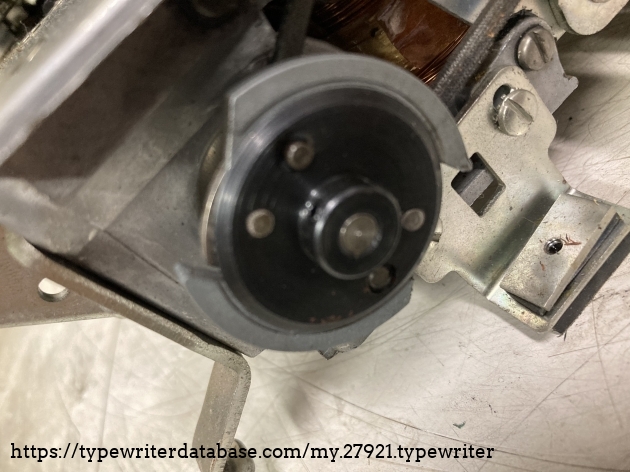

larger motor clutch assembly.

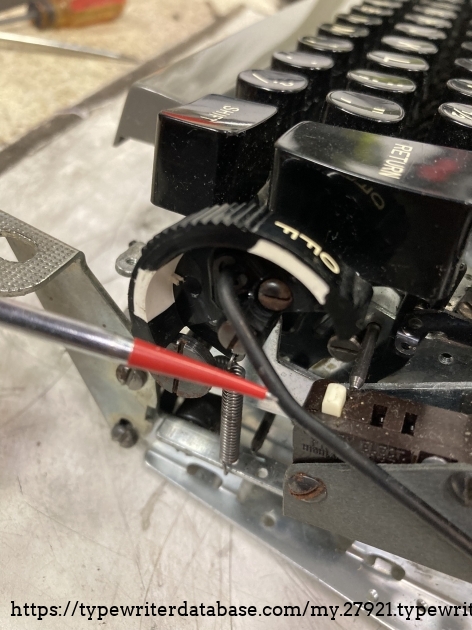

Switch also locks out return mech.

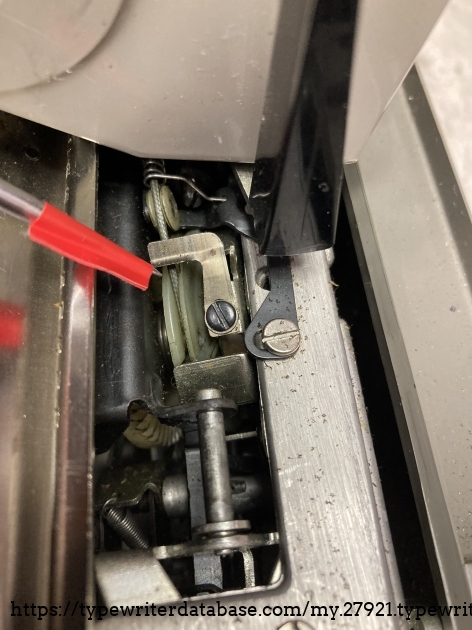

Part of the return mech drive system.

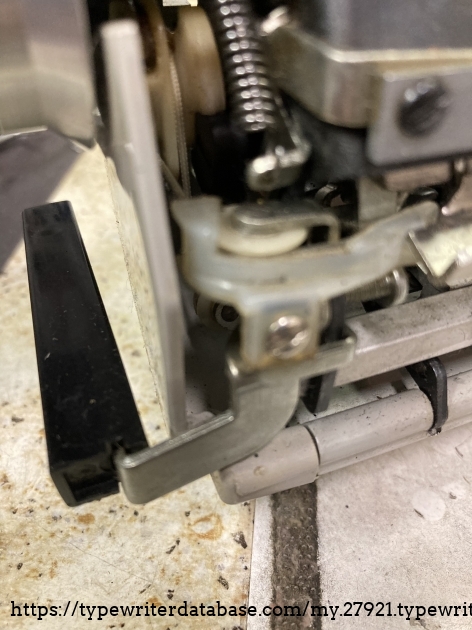

return mechanism. gone is the rack drive.

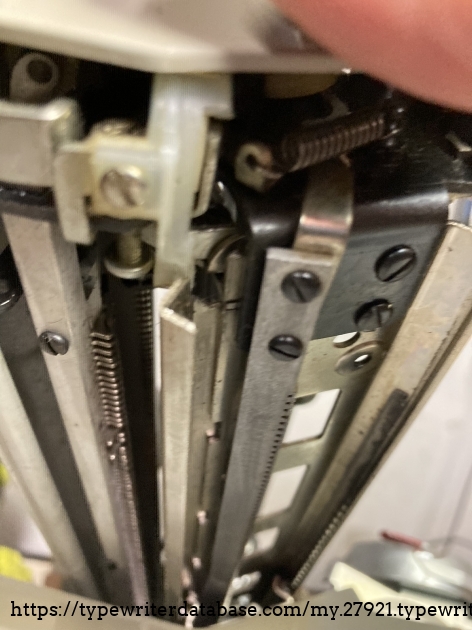

another view of the eliminated rack drive for return/line advance.

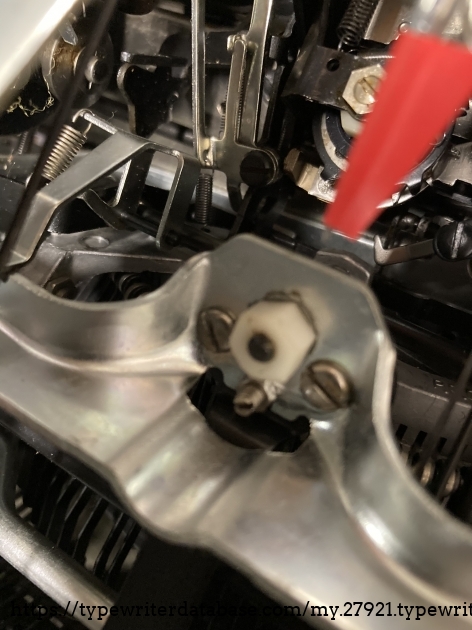

Motion setup changed for frame cross member support.
