1919 Woodstock 5 Serial # BW-40431 1919 Woodstock 5 typewriter, Serial # BW-40431 Brian Decker's 1919 Woodstock 5 typewriter. 2026-02-01 From the Virtual Typewriter Collection of Brian Decker: 1919 Woodstock 5 Serial # BW-40431 2-1-2026 Update. Today, I cleaned the typeface, the typebars, and the machine overall to get a better typing sample. I have updated the gallery with improved images. The platen and rollers are very cracked, so, although the imprint looks good, there is much more work needed to make this a type-worthy specimen. In the past day or two, I have learned that these early Woodstock 5 machines have matching serial numbers on the frame underneath, next to the front left foot. In the case of this machine, B-"W"-40431, the "W" is actually placed below the hyphenated serial number, B-40431. This makes me wonder if there is not really a distinct BW series, and they are numbered concurrently with the standard carriage "B" machines.

Also of note: (1) The ribbon vibrator mechanism is not working properly on #BW-40431, nor on my other early Woodstock 5, #B-29702, indicating perhaps a systemic weakness in the design. The selector switch is a multi-position setting, not just two positions; even at the lowest setting, neither machine prints wholly from the red portion of the ribbon. (2) #BW-40431 had a cracked frame, possibly due to shipping damage. I repaired this with J. B. Weld, but the seam is apparent at the left end of the front of the frame. (3) #BW-40431 came with a missing left-hand platen knob, and the right-had platen knob worn nearly smooth. It doesn't seem that later Woodstock 5N platen knobs are a match, so I am interested in finding a parts machine to replace these knobs.

Overall, I have found both of my Woodstock 5's to have a very pleasant typing action, overlooking their mechanical problems that will have to be addressed.

11-16-2025 Gallery Creation. This is a "wide" (11") carriage version of the early Woodstock Model 5. I bought it on eBay on 26 October 2006, for $59.00 with shipping included. It has a "Margin Release" control, whereas my other Woodstock 5 (B-29702, est. 1918, see linked gallery) has a "Line-Lock Release" control in its place. The machine pictured here is missing its left platen knob; if you have or know of a replacement, I would be interested.

1919 Woodstock 5 #BW-40431

Status: My Collection
Hunter: Brian Decker (bkdecker66)
Created: 11-16-2025 at 04:55PM
Last Edit: 02-01-2026 at 08:19PM

Description Hunter 26 Photos 0 Likes  Find on Ebay #AD  Find on Etsy #AD

Description:

2-1-2026 Update. Today, I cleaned the typeface, the typebars, and the machine overall to get a better typing sample. I have updated the gallery with improved images. The platen and rollers are very cracked, so, although the imprint looks good, there is much more work needed to make this a type-worthy specimen. In the past day or two, I have learned that these early Woodstock 5 machines have matching serial numbers on the frame underneath, next to the front left foot. In the case of this machine, B-"W"-40431, the "W" is actually placed below the hyphenated serial number, B-40431. This makes me wonder if there is not really a distinct BW series, and they are numbered concurrently with the standard carriage "B" machines.

Also of note: (1) The ribbon vibrator mechanism is not working properly on #BW-40431, nor on my other early Woodstock 5, #B-29702, indicating perhaps a systemic weakness in the design. The selector switch is a multi-position setting, not just two positions; even at the lowest setting, neither machine prints wholly from the red portion of the ribbon. (2) #BW-40431 had a cracked frame, possibly due to shipping damage. I repaired this with J. B. Weld, but the seam is apparent at the left end of the front of the frame. (3) #BW-40431 came with a missing left-hand platen knob, and the right-had platen knob worn nearly smooth. It doesn't seem that later Woodstock 5N platen knobs are a match, so I am interested in finding a parts machine to replace these knobs.

Overall, I have found both of my Woodstock 5's to have a very pleasant typing action, overlooking their mechanical problems that will have to be addressed.

11-16-2025 Gallery Creation. This is a "wide" (11") carriage version of the early Woodstock Model 5. I bought it on eBay on 26 October 2006, for $59.00 with shipping included. It has a "Margin Release" control, whereas my other Woodstock 5 (B-29702, est. 1918, see linked gallery) has a "Line-Lock Release" control in its place. The machine pictured here is missing its left platen knob; if you have or know of a replacement, I would be interested.

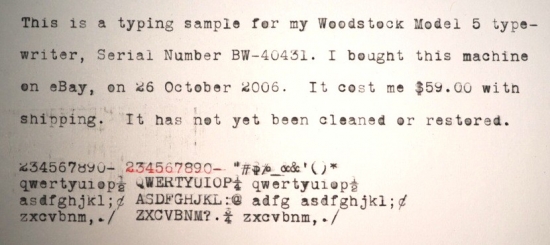

Typeface Specimen:

Links:

Photos:

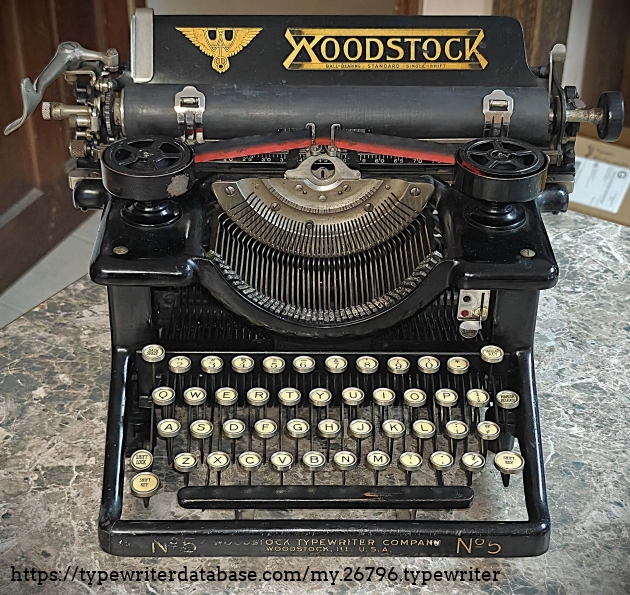

Top-angle front view.
Top-angle front view.

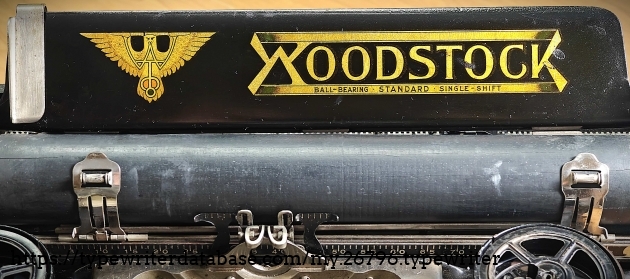

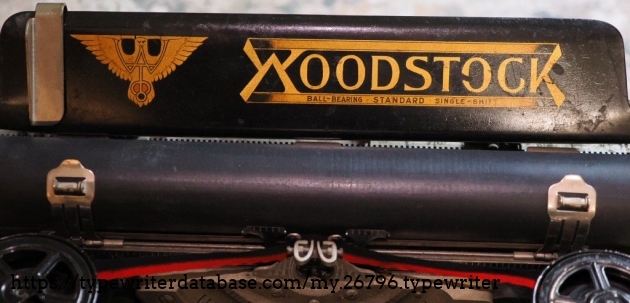

Paper table.
Paper table.

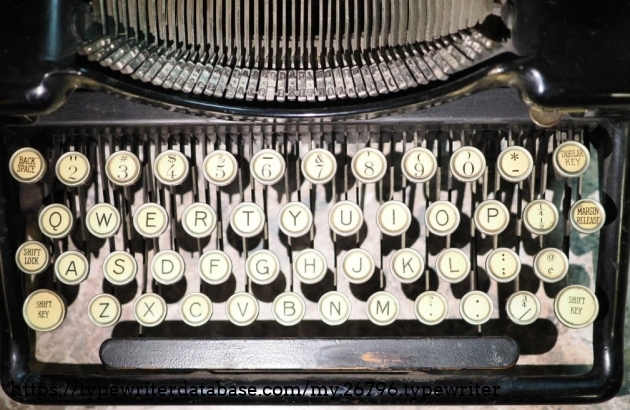

Keyboard.
Keyboard.

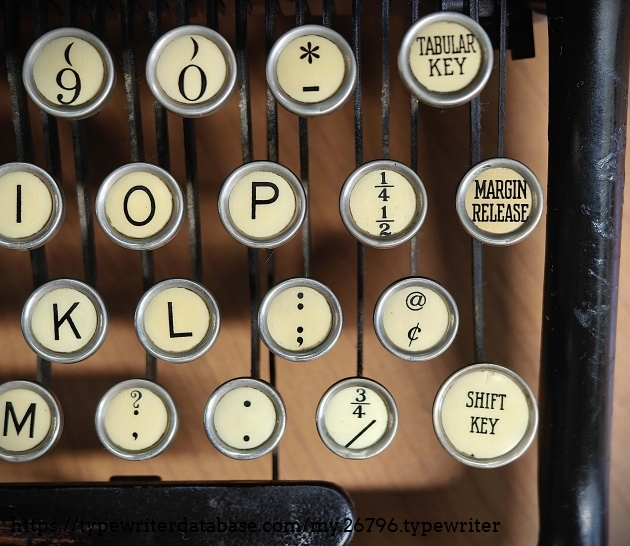

Keyboard detail showing tabulator and margin release keys.
Keyboard detail showing tabulator and margin release keys.

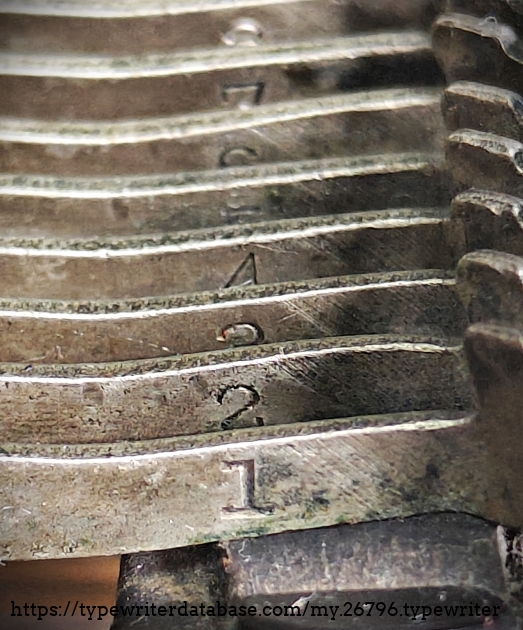

Numbered typebars.
Numbered typebars.

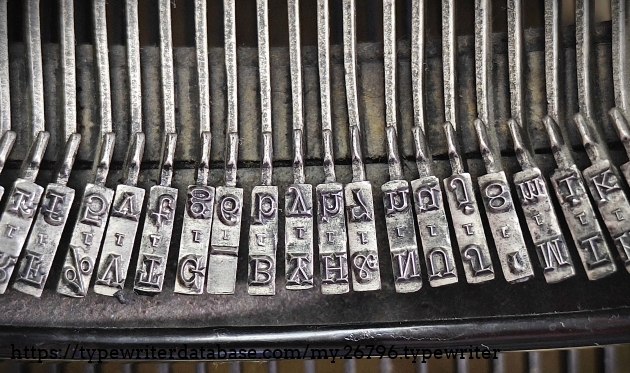

Type slugs showing "1" foundry mark for pica; middle keys.
Type slugs showing "1" foundry mark for pica; middle keys.

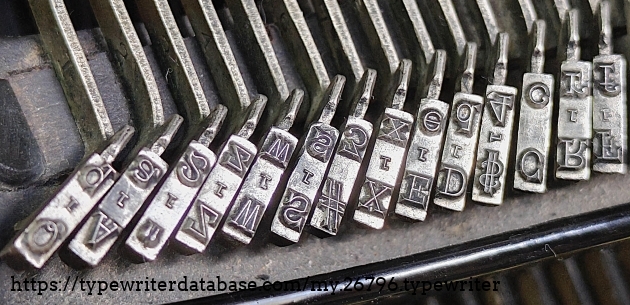

Type slugs with foudry marks - left keys
Type slugs with foudry marks - left keys

Type slugs with foundry marks - right keys.
Type slugs with foundry marks - right keys.

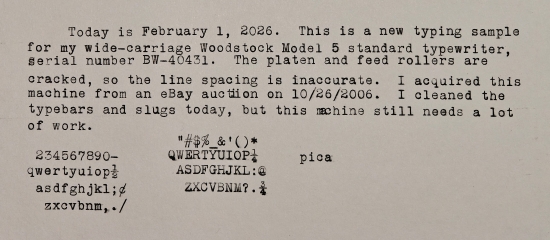

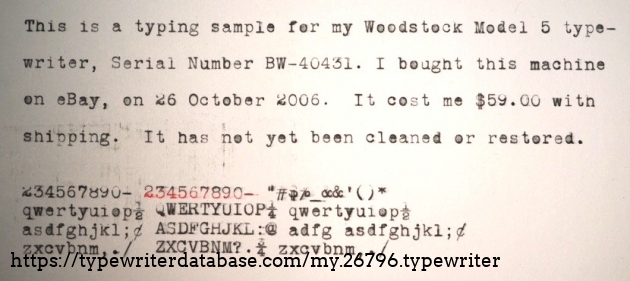

Typing sample.
Typing sample.

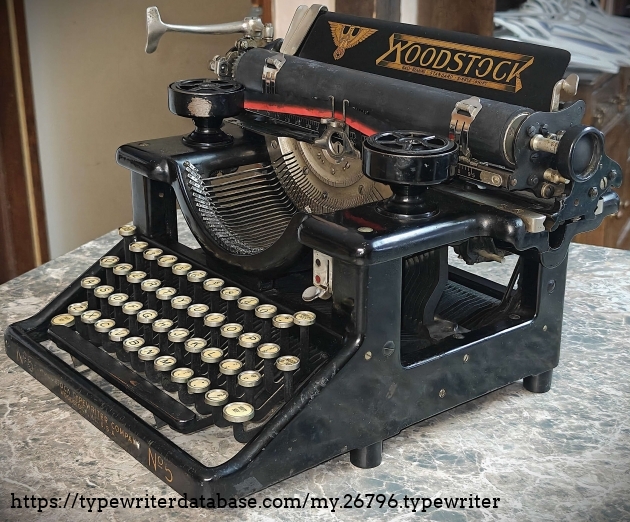

Right quadrant with ribbon installed.
Right quadrant with ribbon installed.

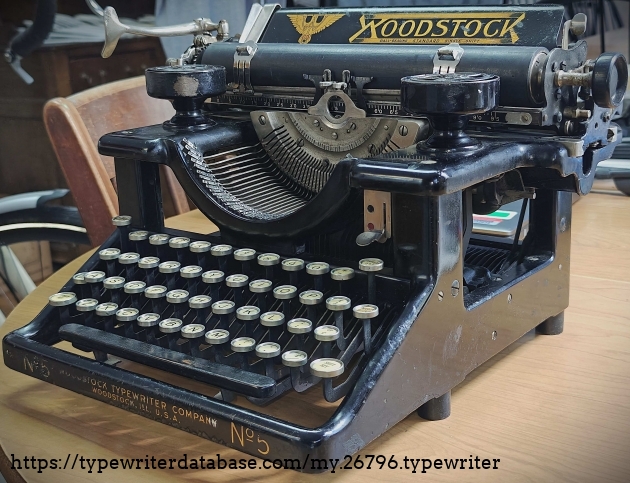

Right quadrant without ribbon.
Right quadrant without ribbon.

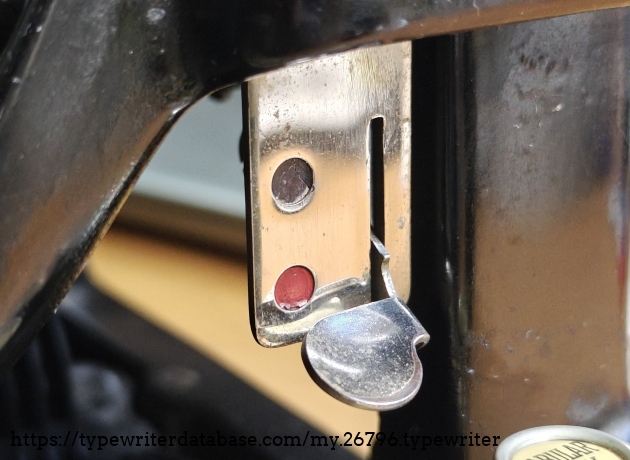

Ribbon selector detail.
Ribbon selector detail.

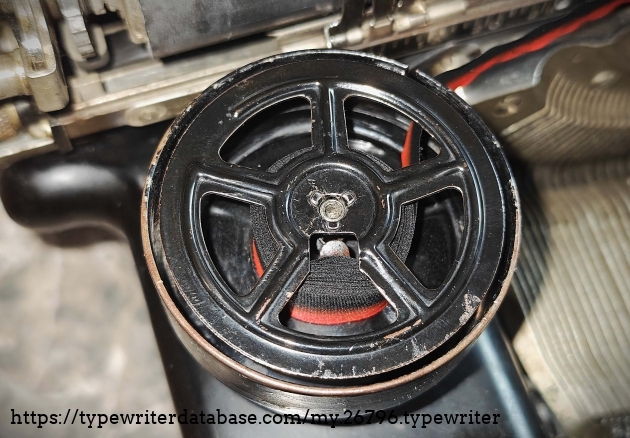

Left ribbon spool.
Left ribbon spool.

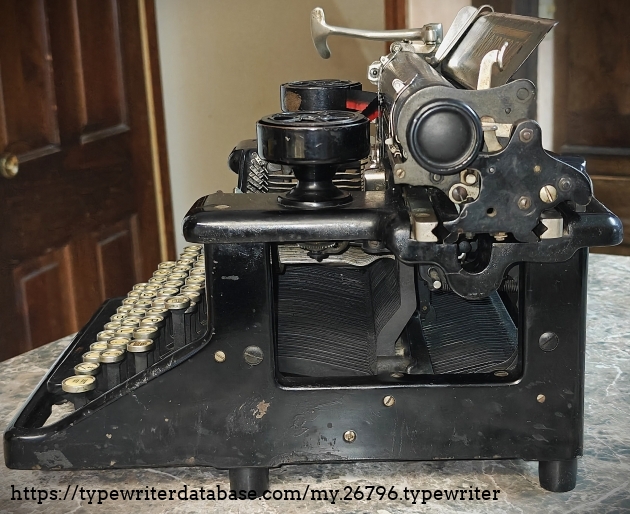

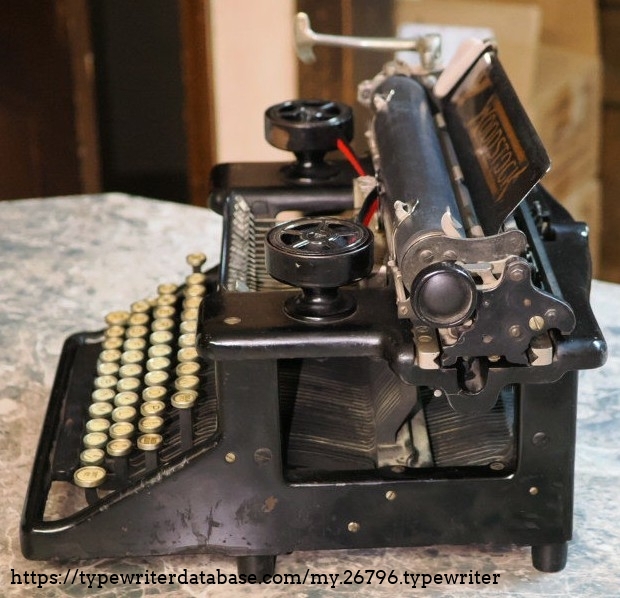

Right.
Right.

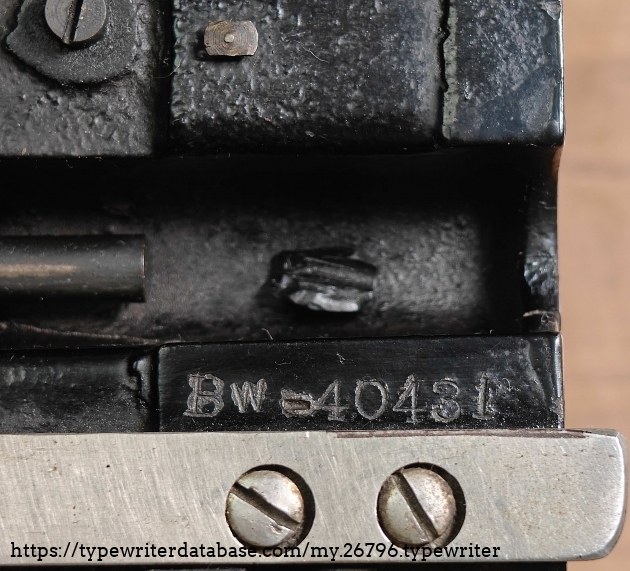

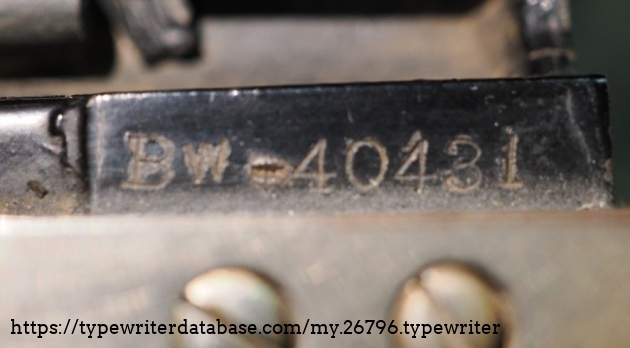

Right top serial number.
Right top serial number.

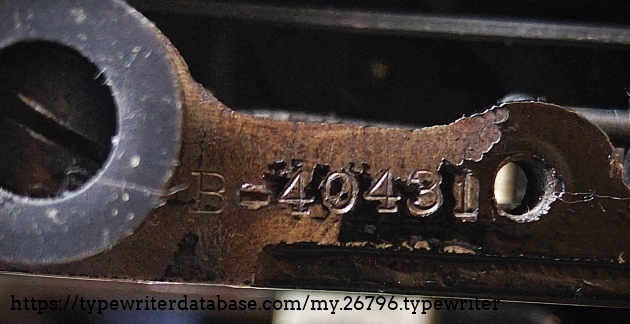

Left underside serial number.
Left underside serial number.

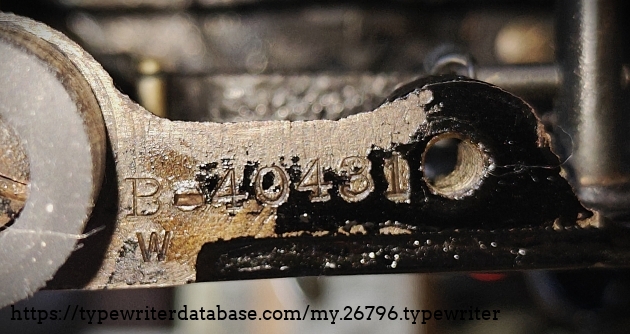

Left underside serial number, showing more clearly the placement of "W" under the B-40431 serial number.
Left underside serial number, showing more clearly the placement of "W" under the B-40431 serial number.

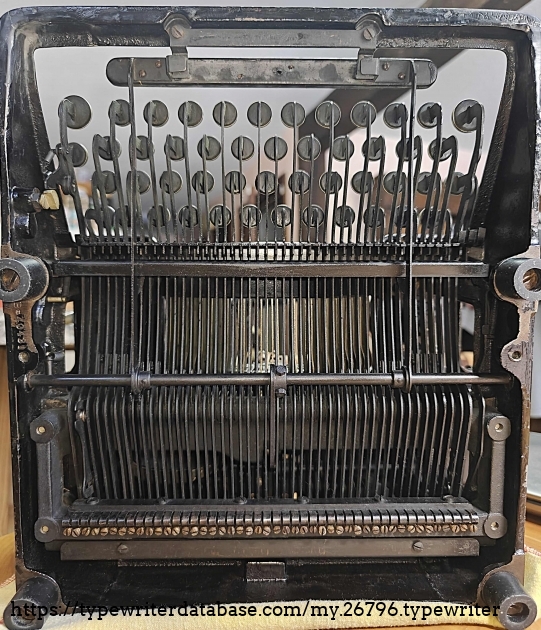

Underside.
Underside.

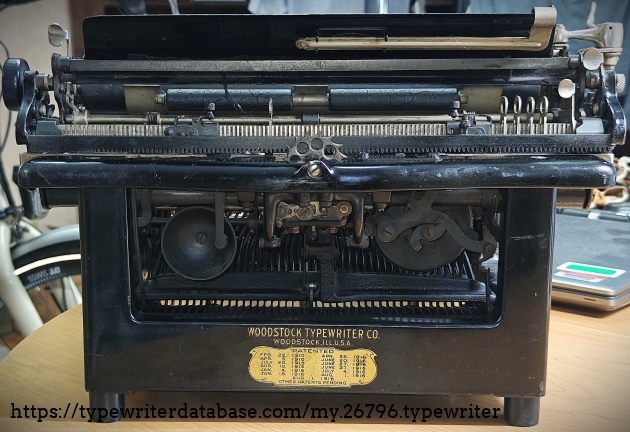

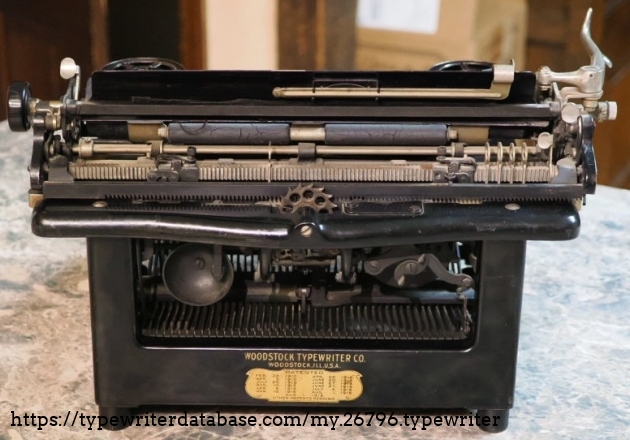

Back.
Back.

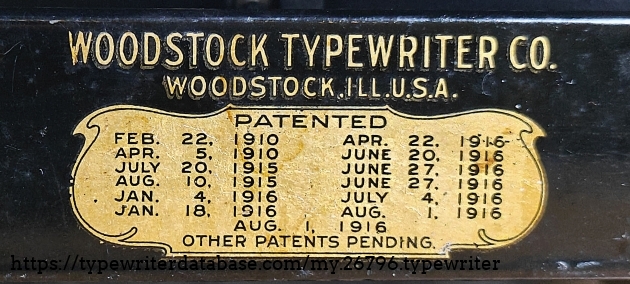

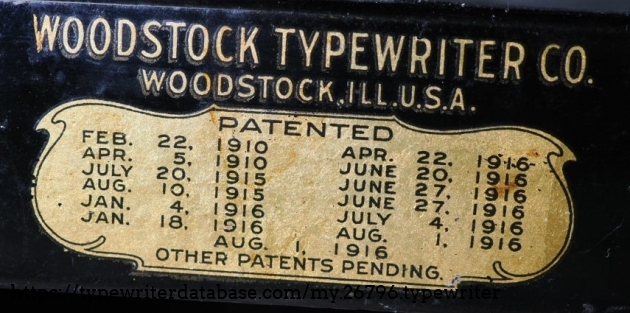

Patent dates.
Patent dates.

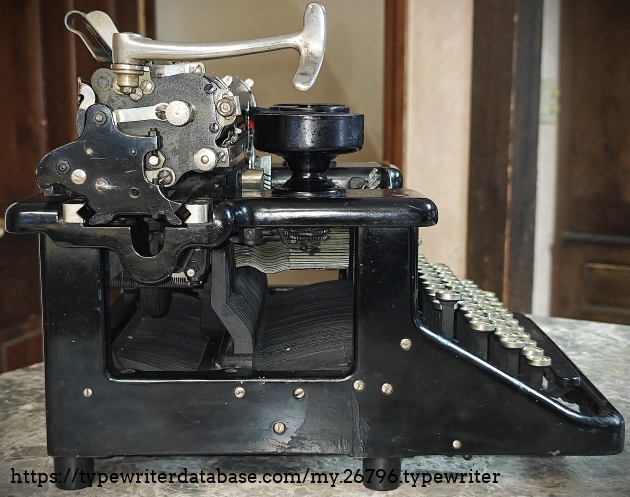

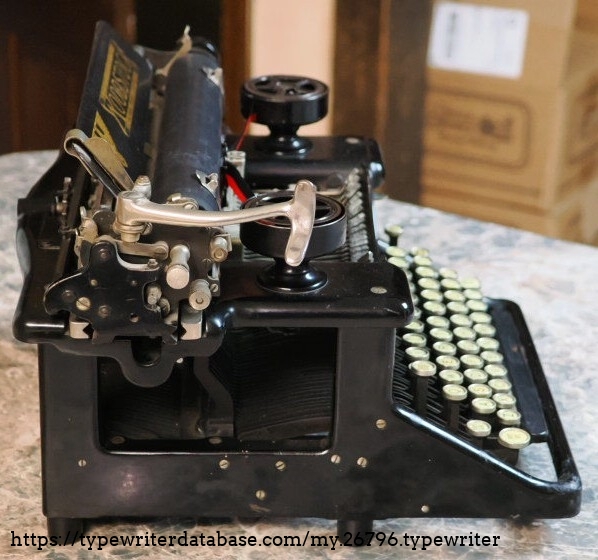

Left.
Left.

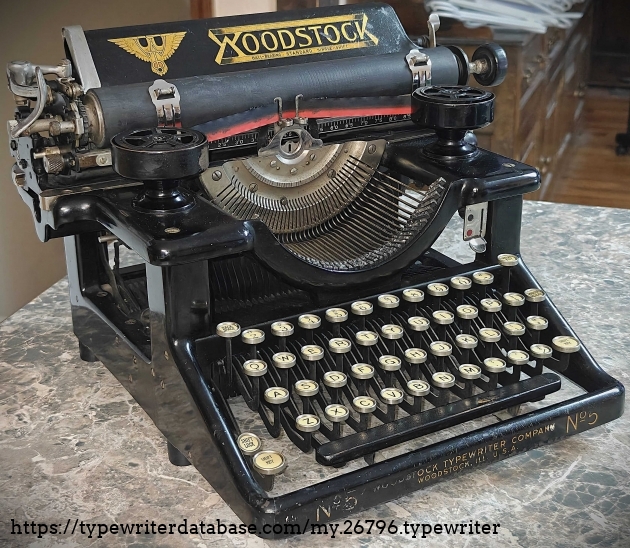

Left quadrant with ribbon installed.
Left quadrant with ribbon installed.

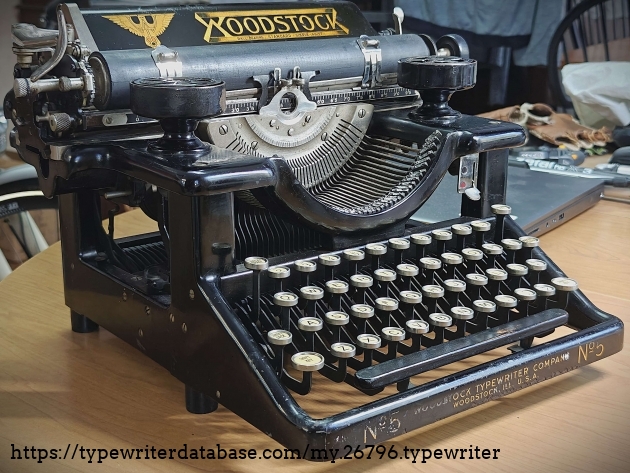

Left quadrant with no ribbon installed.
Left quadrant with no ribbon installed.

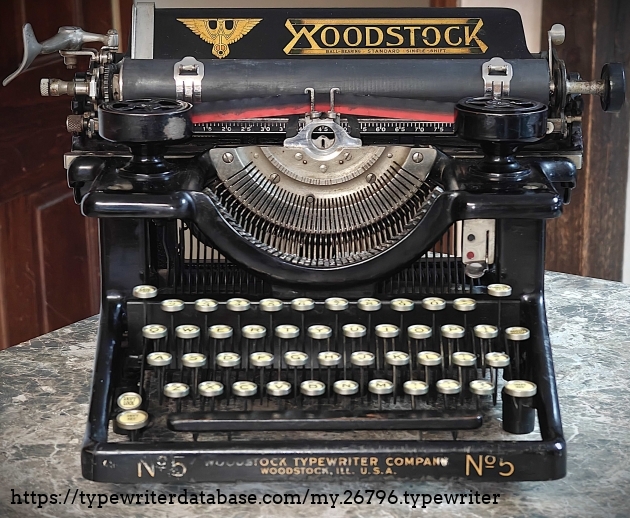

Front with ribbon installed.
Front with ribbon installed.

Front view without ribbon installed.
Front view without ribbon installed.

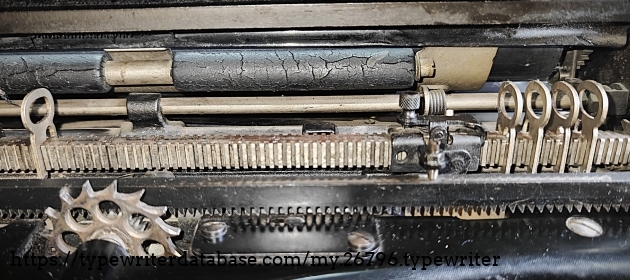

Detail showing the 5 tab stops that came with this machine. My other Woodstock Model 5, #B-29702, came with only two.
Detail showing the 5 tab stops that came with this machine. My other Woodstock Model 5, #B-29702, came with only two.
