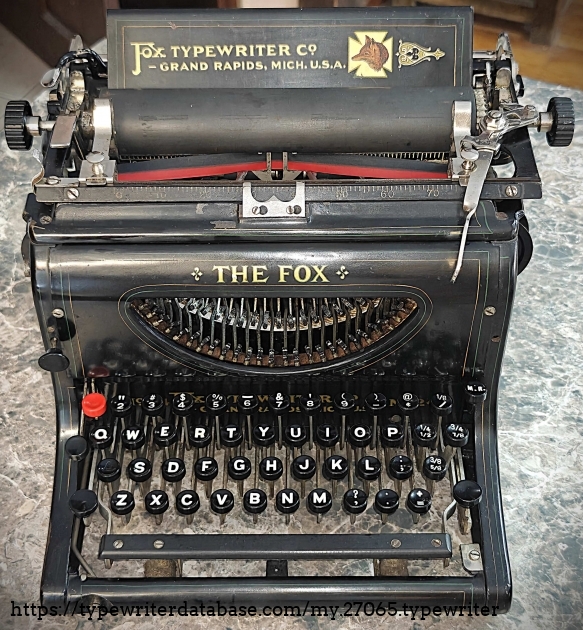

This is the third of the three Fox Visible Model 24 typewriters that I acquired, and the earliest of the three. It seems to be the earliest Fox 24 with a gallery in TWDB as of this writing (12/30/2025). Like my other two Fox 24 machines, I won this one in an eBay auction. My electronic records are lost on a crashed hard drive, but I have written notes indicating that I acquired this before 9/4/2001, and most likely in July or August of 2001. From memory, my cost was between that of my 1915 Fox 24 (S/N 75096) and my 1917 Fox 24 (S/N 107271), somewhere in the range of $125 +/- $20.

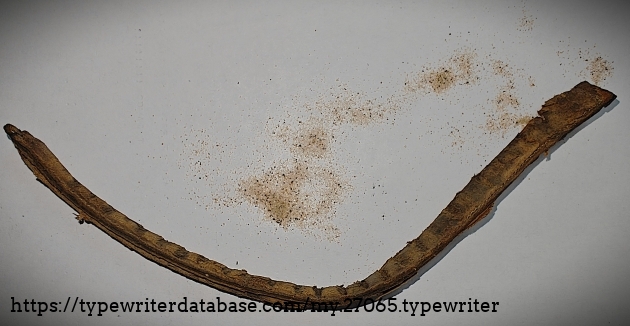

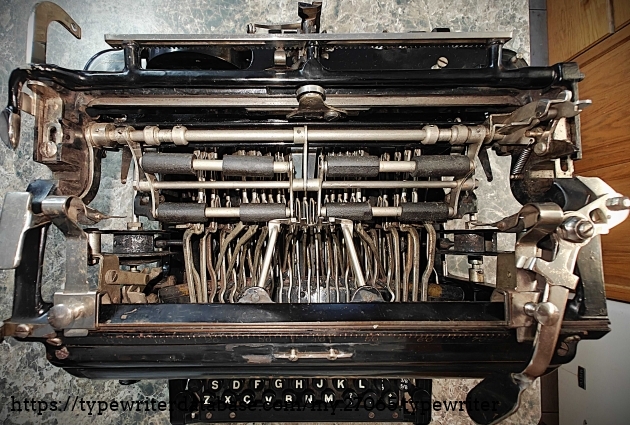

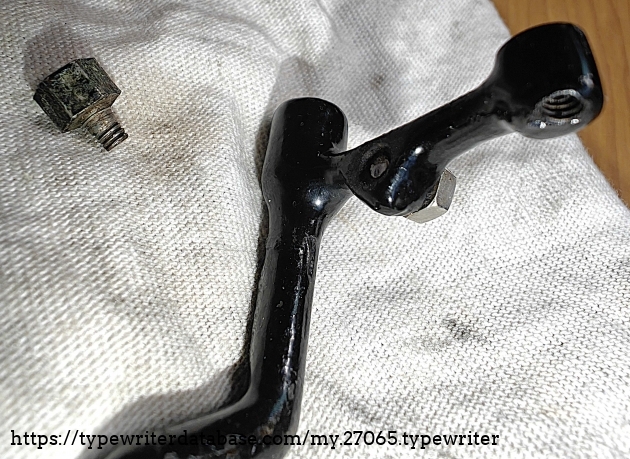

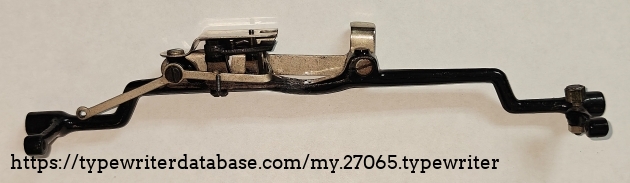

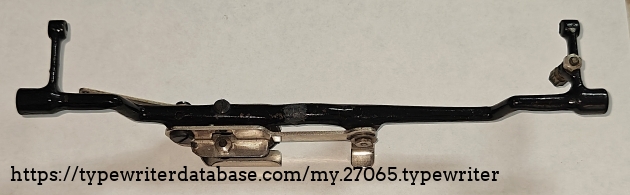

This day of gallery creation (12/30/25) is the very first day I have typed anything on this machine. I spent the past 2-3 days fixing multiple issues. I had already used JB Weld to repair the dog rocker arm and one of the basket shift arms. When putting the dog assembly back together, I noticed that the rocker stop nut was bent. It broke under very little pressure, so I had to JB Weld that as well. I found that the "S" key linkage and the "X" key linkage had both shifted to the other side of their respective guide pins, so I had to remove the clevis joints and coax them back into place with needle-nose pliers. Then I had to clean the type thoroughly, as it was very gunky and perhaps had not been used in a century. The carriage draw-band was broken, but fortunately my absolute wreck of an Underwood Universal portable parts machine (S/N F61932) had a perfectly good one, and I installed it in the Fox. Finally, I had to rig up some typebar rests with some thick rope and strips of leather and cardboard.

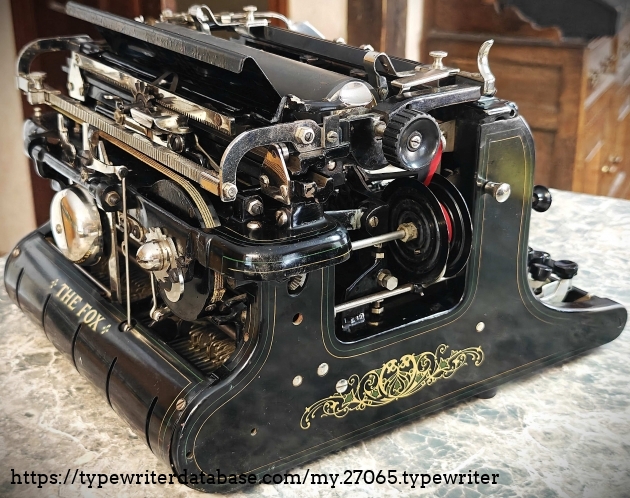

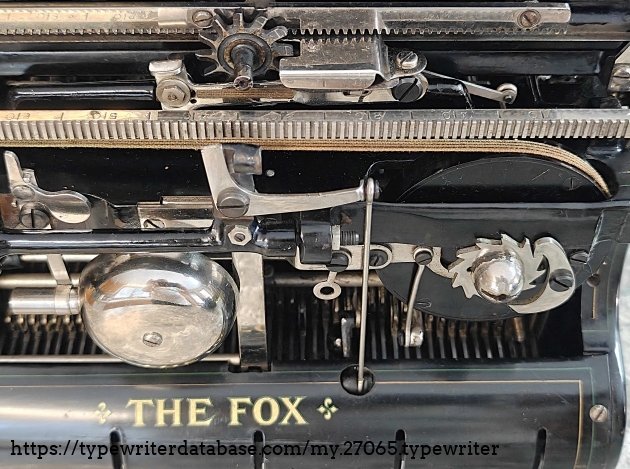

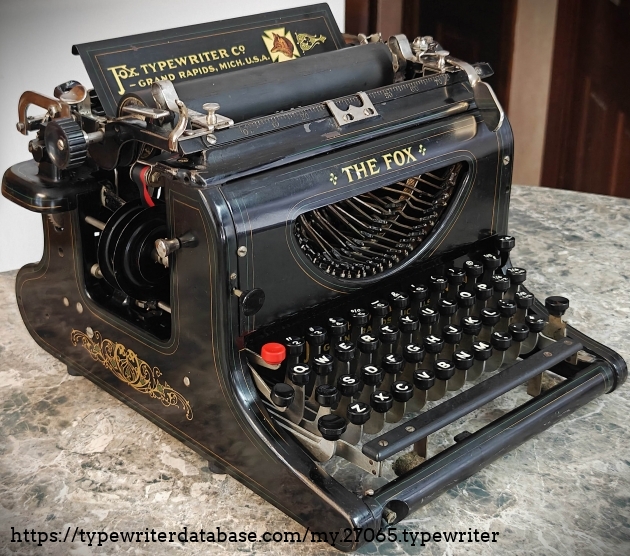

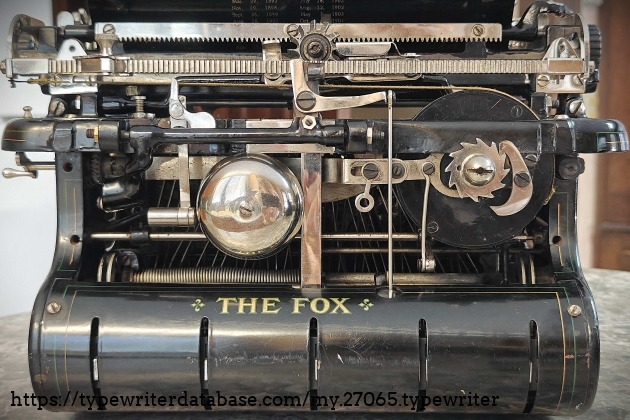

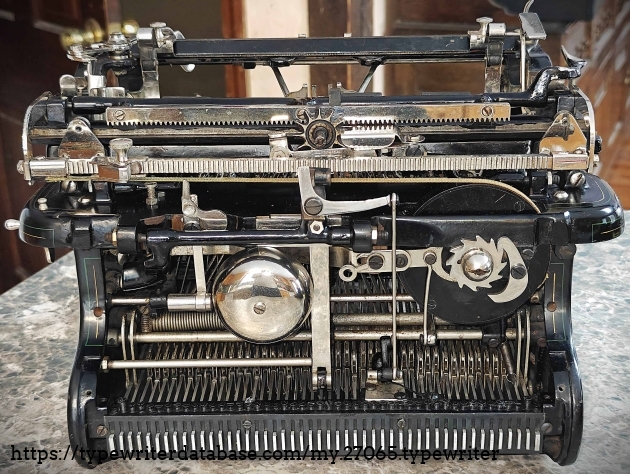

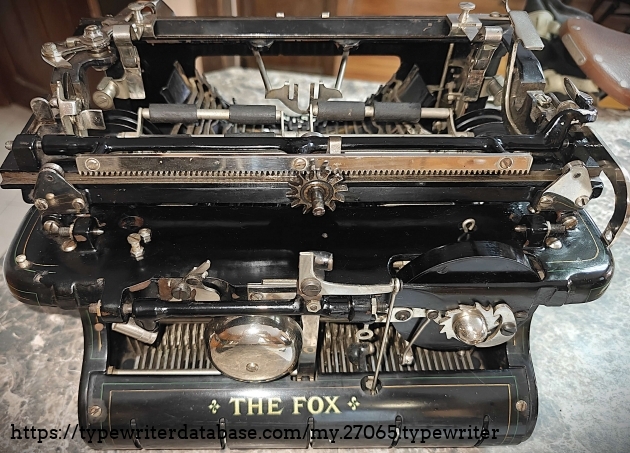

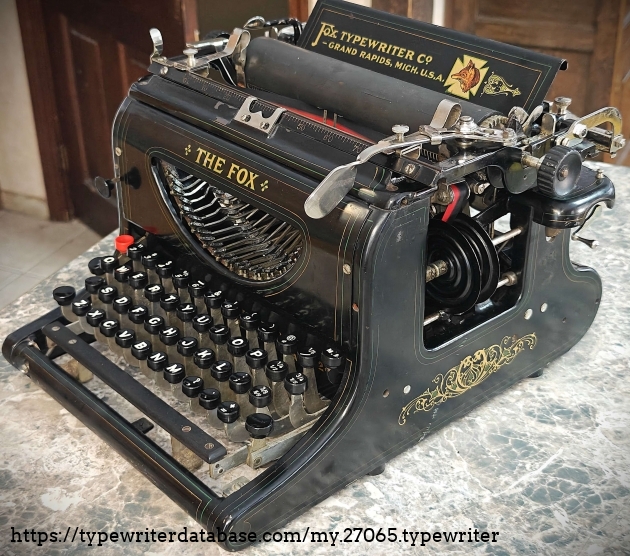

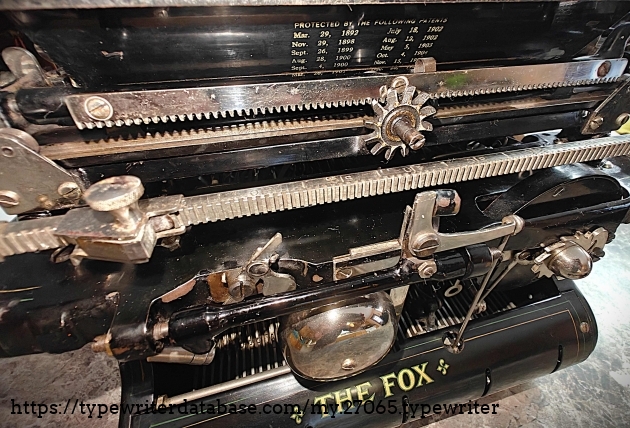

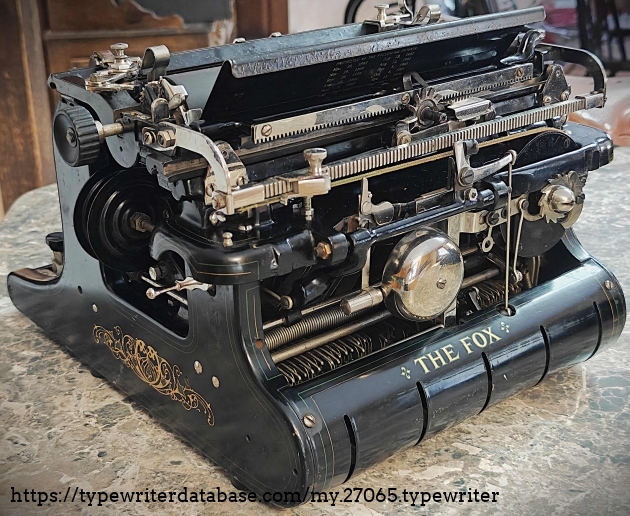

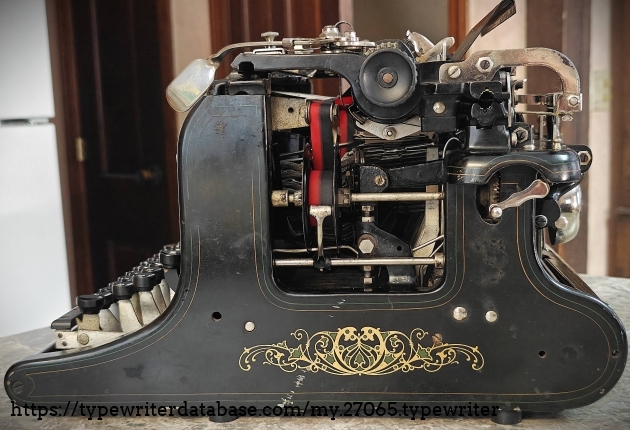

Although this machine superficially looks like most Fox 24's, on closer inspection, there are very many subtle differences indicating this is a very early machine in the series. One very visible example is that the margin release lever passes through a cut-out hole in the back panel. Many parts on the back are made of brittle cast iron tubes (including the dog rocker). Many parts are nickeled that they didn't bother with later in the series, probably to save cost.

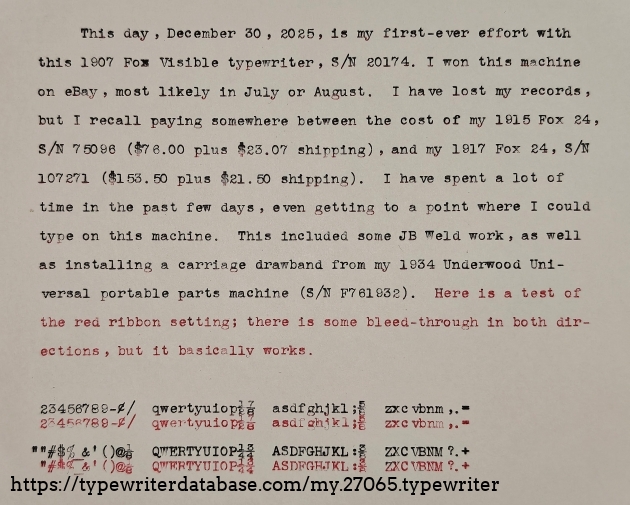

There are some alignment issues, and red/black bleed-through, but the machine basically types okay now. It has a Pica typeface. It brings a sense of accomplishment to have brought it back to life even this much!

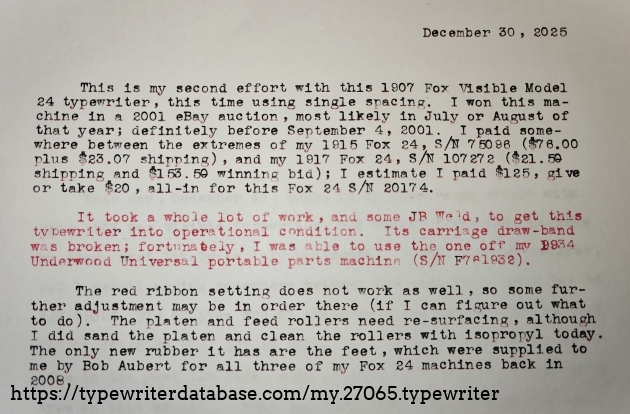

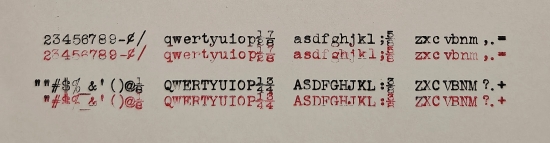

Typeface Specimen:
