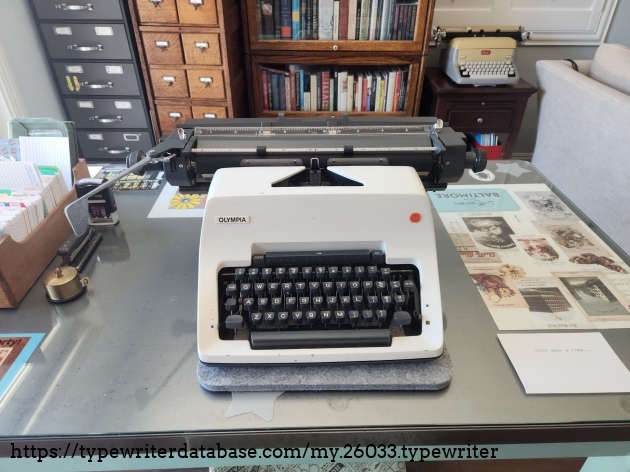

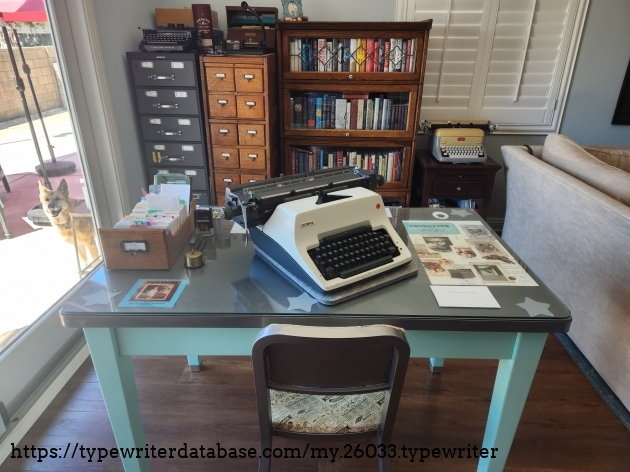

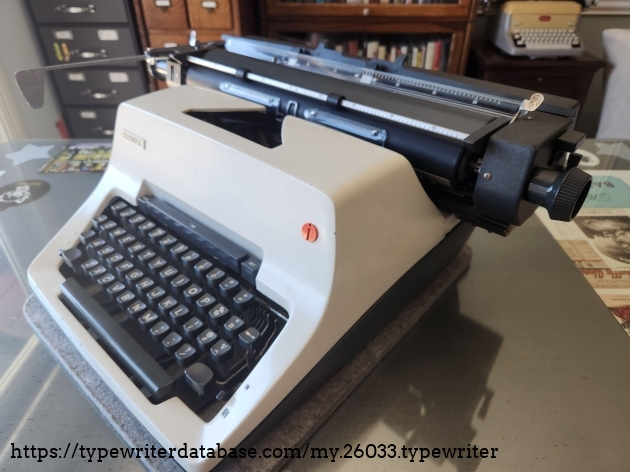

1971 Olympia SG3 #7-2663226

Status: My Collection
Hunter: Chris Aldrich (chrisaldrich)
Created: 07-13-2025 at 03:32PM
Last Edit: 08-08-2025 at 01:08AM

Description Hunter 17 Photos 2 Likes  Find on Ebay #AD  Find on Etsy #AD

Description:

2025-07-11 Received as a birthday present. It was hiding a Basic Writing No. 67 typeface at 6CPI making this the first large typeface in my collection.

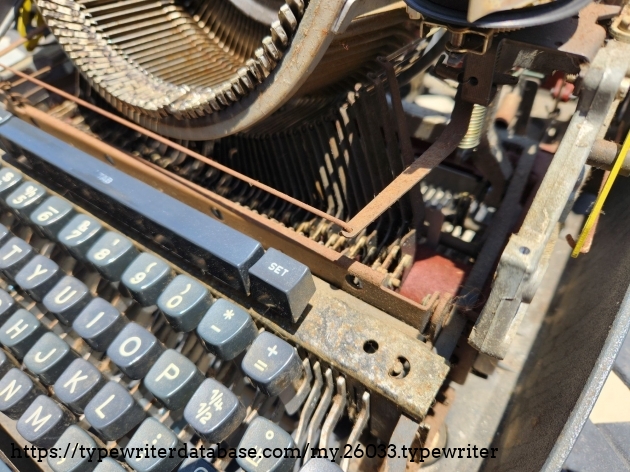

2025-08-05 Spent about three hours tonight disassembling and cleaning the carriage portion of this machine. The grinding/sticking I was getting mid-carriage was due to a piece of the right carriage cover being bent back and over itself. Removing it and forming it back remedied the situation well. Cleaned and treated the rear body panels which show signs of rust developing underneath the paint. (Rust on other portions of the machine indicate it was kept in a less-than-ideal location for years.)

Just as I was nearing completion, the drawband managed to slip off it's mount and the mainspring's unwinding broke the drawband at the metal attachment to the carriage. It took a while to remove the old material, form the cleat open, reseat the drawband and then close it back up. Fortunately re-tensioning the mainspring was pretty simple and straightforward.

The platen action is so smooth that with the variable lever in the open position, the entire platen will spin freely in a way I've never seen a typewriter manage before. Sadly it shows that the right platen knob has a small eccentricity, though it's so minor I think I'll leave it.

In cleaning it, I also noticed that the carriage return arm apparently used to be chromed, but done so badly it's all been peeled off at this point. As a result the return arm has a galvanized appearance which isn't ideal. I'll have to consider some options to improve it.

The toughest part of the operation was the insane amount of degreaser it took to clean off the margin rail to get the margin sets to work properly. I have a feeling that someone managed to get Scotch tape stuck up underneath the left margin set and it took 20 minutes to flush it all out. Now they're as smooth as butter.

Typeface Specimen:

Links:

• Acquired 1971 Olympia SG-3 Standard Typewriter with a Story Book Typeface
• Cleaning of the carriage
• Cleaned, Oiled, and Adjusted 1971 Olympia SG3

Photos:

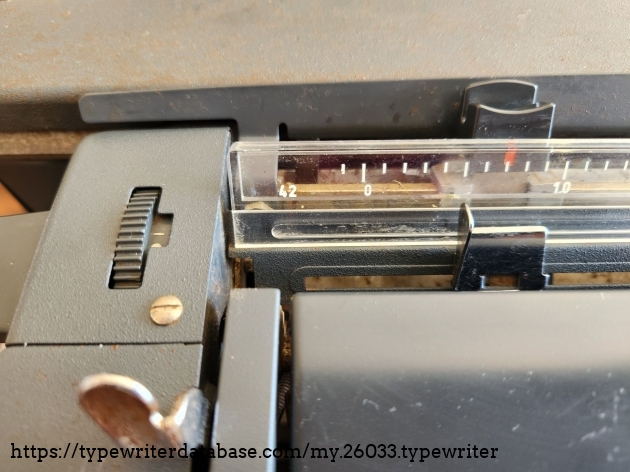

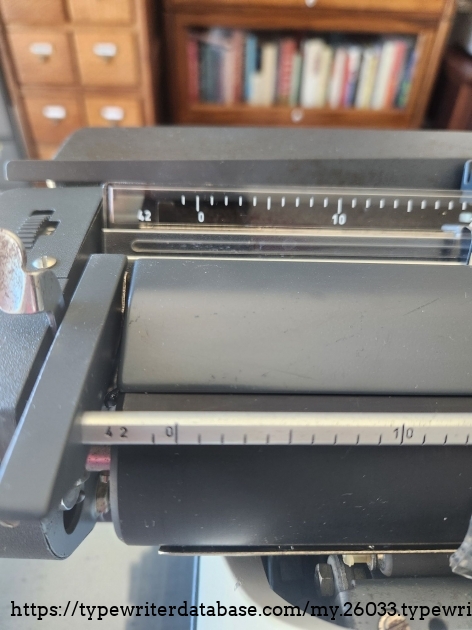

Notice the 42 on the left side of the paper table's ruler. This indicates the machine's pitch is 4.2m/m or 6 CPI.

Notice that the ribbon selector only has two real options: blue and stencil. The 6 CPI typeface is so large that it requires a monochrome ribbon to accommodate the type.
