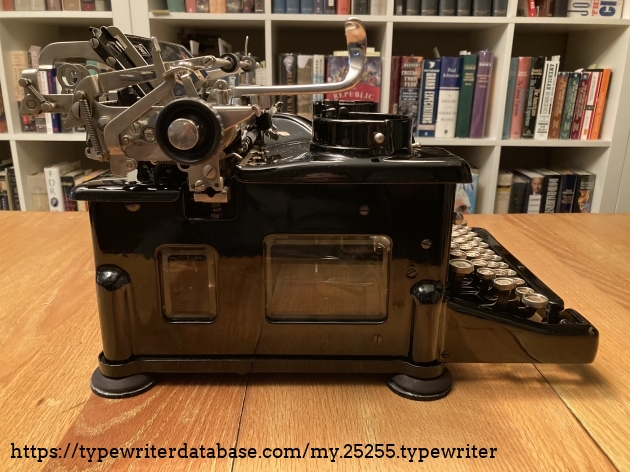

1922 Royal 10 Serial # Q-X-673880 1922 Royal 10 typewriter, Serial # Q-X-673880 James Grooms's 1922 Royal 10 typewriter. 2026-05-16 From the Virtual Typewriter Collection of James Grooms: 1922 Royal 10 Serial # Q-X-673880 The Quiet or Special Model 10 was advertised alongside the X model from late 1921 through 1922. The SNs run into 1923, but I can find no ads for 23. Add your machines to the DB~! So far:
Q-X 601
Q-X 607
Q-X 673
Q-X 740
QX 1117 (I'd like to see a good pic of the SN on this one).

There is a one off 1927 machine with a Q SN in the gallery. The segment looks like a Quiet model. Did someone get a special order?

The escapement, linkage, segment, and typebar rest are all redesigned and capped off with a lower cover and thick insulation pad that seals up the bottom end. The X sold for $102.50 and the Q-X for $105. Beeching, as usual, offers little to go on as to why it was withdrawn. Was it a test run of new ideas to be employed on the new model for 1923? Was there a design flaw or possibly the users simply didn't like the changed action and sound?

United States Patent 1,390,708 was issued on September 13, 1921, to inventor Carl J. V. Anderson for a typewriting machine. The patent details specific improvements to the type action mechanism connecting key levers to type bars.

I am going to have the platen recovered or use one from a rebuilt machine that is significantly better. Next up is a pad or replacement of the typebar rest. As it is, compared to an X, it is quieter and has an entirely different feel to the action.

This gem was employed at Schwinn HQ in Chicago and was a retirement gift. Once home into a closet where it was stored unit I acquired it from a grandchild. Some things you don't often see on machines this old were the paper table felt is still intact, as well the rubber gasket/insulators under the four top covers. Just look at that lower cover pad!

With a KS (keyset-segment) machine pending service, this completes the Royal 10 variant collection.

1922 Royal 10 #Q-X-673880

Status: My Collection
Hunter: James Grooms (jgrooms)
Created: 04-04-2025 at 07:48AM
Last Edit: 05-16-2026 at 02:24PM

Description Hunter 30 Photos 2 Likes  Find on Ebay #AD  Find on Etsy #AD

Description:

The Quiet or Special Model 10 was advertised alongside the X model from late 1921 through 1922. The SNs run into 1923, but I can find no ads for 23. Add your machines to the DB~! So far:
Q-X 601
Q-X 607
Q-X 673
Q-X 740
QX 1117 (I'd like to see a good pic of the SN on this one).

There is a one off 1927 machine with a Q SN in the gallery. The segment looks like a Quiet model. Did someone get a special order?

The escapement, linkage, segment, and typebar rest are all redesigned and capped off with a lower cover and thick insulation pad that seals up the bottom end. The X sold for $102.50 and the Q-X for $105. Beeching, as usual, offers little to go on as to why it was withdrawn. Was it a test run of new ideas to be employed on the new model for 1923? Was there a design flaw or possibly the users simply didn't like the changed action and sound?

United States Patent 1,390,708 was issued on September 13, 1921, to inventor Carl J. V. Anderson for a typewriting machine. The patent details specific improvements to the type action mechanism connecting key levers to type bars.

I am going to have the platen recovered or use one from a rebuilt machine that is significantly better. Next up is a pad or replacement of the typebar rest. As it is, compared to an X, it is quieter and has an entirely different feel to the action.

This gem was employed at Schwinn HQ in Chicago and was a retirement gift. Once home into a closet where it was stored unit I acquired it from a grandchild. Some things you don't often see on machines this old were the paper table felt is still intact, as well the rubber gasket/insulators under the four top covers. Just look at that lower cover pad!

With a KS (keyset-segment) machine pending service, this completes the Royal 10 variant collection.
